Product Overview

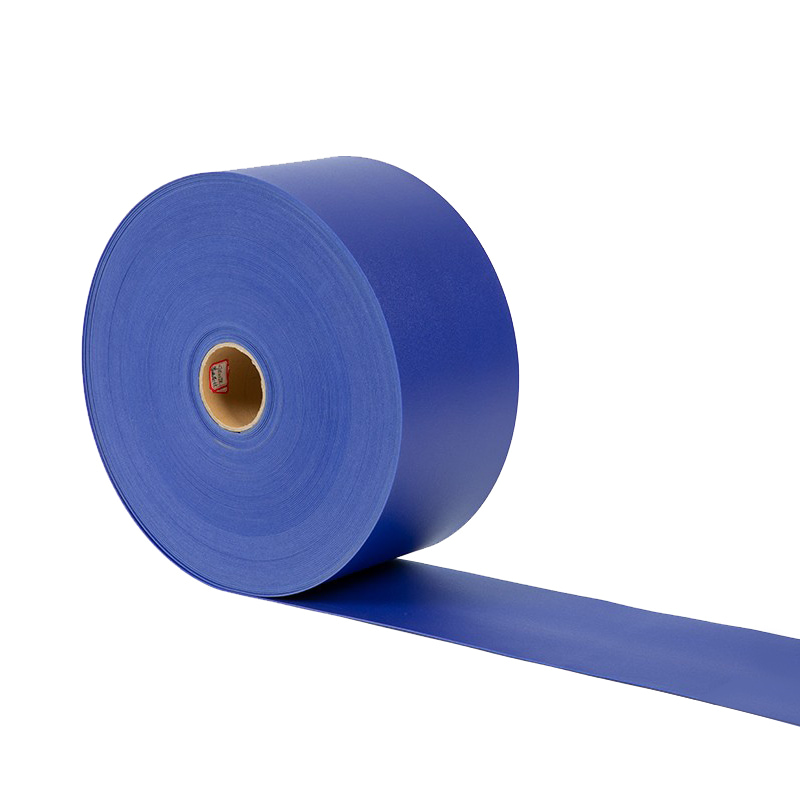

Our IXPE Underlayment (Irradiation Cross-Linked Polyethylene) is designed to deliver superior sound insulation, moisture protection, cushioning, and durability under various flooring materials. Utilizing advanced electronic cross-linking technology, IXPE offers a non-toxic, eco-friendly, and high-performance solution for residential, commercial, educational, and medical flooring needs.
IXPE product features | Characteristic specification |
Non-toxic and odorless | Using electronic cross-linking technology, there are no chemical residues and no harmful gases are produced |
Thermal insulation | Independent closed cell structure effectively reduces energy exchange caused by air convection and has insulation and heating effects |
Corrosion resistance | The characteristics of polyolefin itself, in addition to related solvent substances, have strong corrosion resistance |
Water and moisture resistance | The independent closed cell structure and the compactness of polyolefin molecular structure itself effectively prevent the penetration of water, and have the effect of water blocking and isolation |
Cushioning property | Independent closed cell structure, capable of self recovery after compression, with shock absorption and impact resistance effects |
Sound insulation | The independent closed cell structure effectively reduces energy exchange and blocks the transmission of sound waves caused by sound and impact, thereby achieving the effect of silence and sound insulation |
Aging resistance | Through electronic cross-linking treatment, the physical and chemical properties of polyethylene molecules have been significantly improved after cross-linking, and their lifespan has increased by more than 5 times compared to before |
Flame retardant, anti-static, conductive, anti-bacterial and anti-mildew | IXPE foam material can also be formulated and processed according to customer needs, which can increase excellent properties such as flame retardancy, anti-static, conductivity, antibacterial and mildew resistance |
Application scenarios:
Residential: Quiet and moisture-proof layer under home floors.
Commercial space: Floor quieting solutions for commercial environments such as offices, shopping malls, and hotels.
Educational institutions: Floor quieting and protection for educational places such as schools and kindergartens.
Medical facilities: Floor quieting and comfort needs for medical environments such as hospitals and clinics.
ISO 9001 Quality Management System
RoHS and REACH compliant for environmental safety
Q: What flooring types are compatible with IXPE underlayment?
A: IXPE is compatible with wood, laminate, vinyl, SPC, and other flooring types.
Q: Does IXPE offer moisture protection?
A: Yes, its closed-cell structure provides excellent moisture and water resistance.
Q: Can IXPE be customized for specific needs?
A: Absolutely. We offer custom solutions with features like flame retardancy, anti-static, and antibacterial properties.
IXPE foam product performance table | |||||||
Foaming ratio | 5 | 7 | 10 | 15 | 20 | 25 | 30 |
Apparent density,kg/m³ | 200±20 | 125±15 | 100±10 | 65±7 | 50±5 | 40±5 | 35±5 |
Tensile strength (longitudinal/transverse),MPa | ≥1.25/1.00 | ≥1.10/0.95 | ≥0.80/0.65 | ≥0.70/0.55 | ≥0.40/0.32 | ≥0.35/0.28 | ≥0.30/0.22 |
Elongation at break (longitudinal/transverse),% | ≥220/180 | ≥200/170 | ≥180/150 | ≥150/135 | ≥140/120 | ≥130/115 | ≥120/100 |
Tear strength (longitudinal/transverse),kN/m | ≥5.4/6.4 | ≥4.4/5.2 | ≥3.4/4.0 | ≥2.6/3.2 | ≥1.8/2.2 | ≥1.6/1.9 | ≥1.3/1.5 |
Size change rate (70℃, 22h) (vertical/horizontal),% | ≤-6/-4 | ≤-6/-4 | ≤-6/-4 | ≤-6/-4 | ≤-6/-4 | ≤-8/-6 | ≤-8/-6 |
Surface water absorption (23±2℃, 24h),mg/c㎡ | ≤0.20 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 |
Compression set(25%,22h)% | ≤4 | ≤5 | ≤6 | ≤6 | ≤8 | ≤8 | ≤10 |
Thermal conductivity,W/m·K | ≤0.080 | ≤0.070 | ≤0.05 | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.04 |
Our Ixpe underlayment undergo a rigorous production process to ensure that each batch of products meets high standards:
1. Raw material mixing: Select low-density polyethylene (LDPE) and auxiliary materials, and use an efficient mixer to ensure uniform distribution of raw materials.
2. Extrusion molding: The mixed raw materials are melted and extruded through an extruder to form a uniform sheet.
3. Electron irradiation cross-linking: The electron accelerator is used for radiation cross-linking to change the original structure of the base material and form a mesh independent closed-cell foam structure.
4. High-temperature foaming: Continuous foaming at high temperature to form a fine and uniform foam structure.
5. Cooling and shaping: Rapid shaping through the cooling system to ensure stable product size.
6. Rolling and packaging: The finished product is rolled and packaged for easy transportation and use.
